Tensai asked me how I made my graphs in my ringtones post. I’d like to blather on about the graphs and why they’re cool and how you can make them, because that’s the sort of thing I’m good at.

In the olden days, the spectrogram was invented.

Originally greyscale, they are now usually portrayed in color, with “hot” colors meaning higher amplitude and “cool” colors meaning lower amplitude.

While there are myriad ways to view and/or generate spectrograms, the most convenient for me right now is to do it in Octave. If you’re not familiar with Octave, it’s a MATLAB clone. Octave is libre, MATLAB is insanely expensive. Obviously, I use Octave. I have used MATLAB previously (I had a beta copy, until it left beta), and for the most part they are quite comparable. Octave is a bit slower for some things (less optimized) but I’ve seen Octave outperform MATLAB on some specific tasks. The biggest impedance mismatch is in user interface stuff (MATLAB has sophisticated dialog support) and graphing. Octave has most of the essential graphing functionality (it uses gnuplot to render graphs).

So how do we generate a spectrogram in Octave? First we need to read in the WAV file, then we generate the spectrogram.

[x,sr] = wavread('logchirp.wav');
specgram(x,8192,sr);

8192 is the size of the FFT. I find 8192 is a nice compromise between time and frequency resolution (and computation time), but other powers of 2 (especially 1024) are common as well. Here’s the chirp spectrogram:

Notice how the chirp is logarithmic. To our ears, this sounds like a steadily-rising tone. For this reason when dealing with music it’s often better to look at a log-frequency spectrogram. Otherwise all the low frequencies are scrunched together and the relationships between different pitches (and harmonics) aren’t constant. Here’s a log-frequency spectrogram of the same chirp:

This was generated by the Octave code

logfsgram(x,8192,sr); title('logchirp.wav');

Notice the bleed on the low frequencies, this is because we need a longer FFT in order to get more frequency resolution at low frequencies. This is a tradeoff in time resolution though, and processor time. Experiment with different FFT lengths for extra credit.

To use these functions you’ll need to put the specgram and logfsgram “m-files” in your octave search path (current directory or whatever else you specify in your ~/.octaverc).

I struggled with this on and off for a couple of months. Finally I stumbled on the magic needed to get it working.

Dan Ellis has some MATLAB code for log-frequency spectrograms, but in Octave the graph lacks the custom y tick marks. Here’s the original code:

    yt = get(gca,'YTick');
    for i = 1:length(yt)
        ytl{i} = sprintf('%.0f',logffrqs(yt(i)));
    end
    set(gca,'YTickLabel',ytl);

This code gets the existing tick marks and labels them with the log frequency (instead of the frequency bin).
The problem is that Octave doesn’t populate YTick unless it was manually set already.

Here’s the working code:

    % octave doesn't populate YTick with its tick marks, so we have to set
    % our own. Besides, this way we get nice octave intervals.
    set(gca,'YTick',1:12:M);
    yt = get(gca,'YTick');
    for i = 1:length(yt)
        ytl{i} = sprintf('%.0f',logffrqs(yt(i)));
    end
    set(gca,'YTickLabel',ytl);

This new phone is unique in all the cell phones I’ve owned or played with in that it isn’t actually difficult to mp3s onto it and use them for ringtones. It’s a Motorola V195. It supports Bluetooth (which is how I get the mp3s on it), but it also has a regular old USB port through which it charges and I take it allows transfer of files (if you don’t have Bluetooth)—though I haven’t confirmed that.

There must be an unwritten rule among cell phone companies that included ringtones must sound like they were written by a drunk adolescent pelican. So we want to put an mp3 ringtone on, but let’s make it a good one. There are good mp3 ringtones and there are really bad mp3 ringtones, and there’s very little middle ground.

Before I give you my criteria for a good ringtone, let’s cover some background theory. Cell phone speakers are little and cheap. They’ve improved some over the years, but they’re still a far cry from a good pair of desktop speakers let alone audiophile gear. So your mp3 will sound different on the phone than it does on your computer or even your headphones. How will it sound? That depends on the frequency response of the speaker in the cell phone. Since that’s not likely included in your cell phone manual, let’s see how we can measure it.

I whipped up this chirp in Audacity. It goes from 20 Hz to 20 kHz (the audible range) with a second of white noise on either side so you know when the thing starts and ends (since 20 Hz and 20 kHz are both out of the hearing range of most people). Its log-frequency spectrogram looks like this: (ignore the bleed at the low frequencies, it’s an artifact of the log-frequency analysis)

The astute among you will have realized that encoding this as an mp3 may change the spectrum. (I use the default settings to lame throughout this post.)

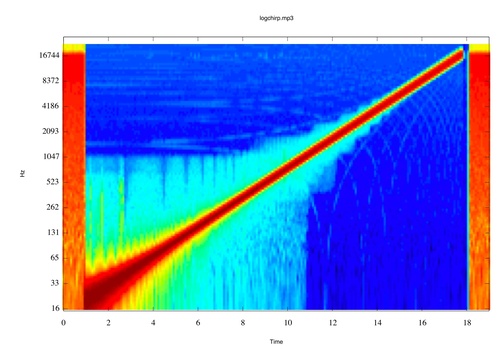

It looks like the only relevant change is that encoding to mp3 cuts off the frequencies above about 17 kHz, which most people don’t hear well or at all. So the experiment is still a go.

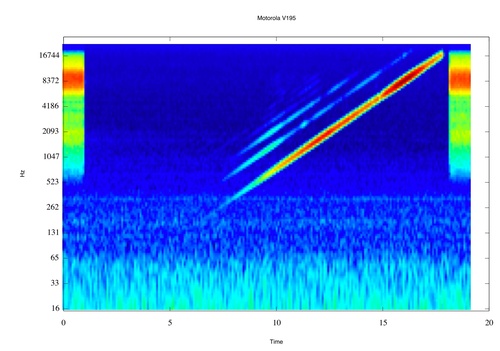

Now I put the chirp on my phone and played it back, recording it into Audacity on my laptop. The astute among you will again realize that the frequency response of my microphone makes a difference. Luckily my microphone has a decent frequency response from 30 Hz to 20 kHz. Even if it didn’t though, as long as the mic has a better frequency range than your phone you can still glean some important information. Here’s the result:

Notice that there’s basically nothing below about 250 Hz. To give you some perspective, 262 Hz is middle C (each tic mark on the Y axis is an octave, and the scale is logarithmic). So anything below middle C is severely attenuated, and the octave between middle C and high C is moderately attenuated.

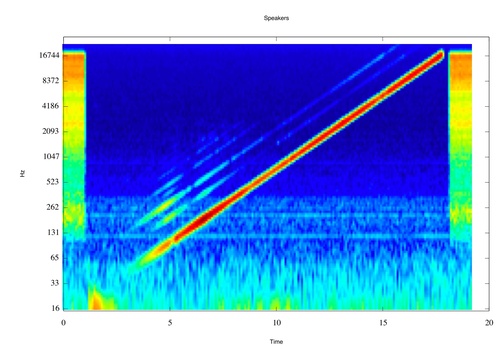

For comparison, here is the chirp recorded on my desktop speakers.

See how it goes lower and also how it is flatter. There’s not an appreciable peak at 8 kHz like there is with the cell phone. That means your high frequencies are going to stick out on a cell phone too.

Ok, so what does this mean for picking ringtones? It means steer clear of things that rely on low frequencies to sound good. Less obviously, it also means to try to steer clear of wide-band sounds that rely on lots of frequencies including low ones to sound good. That means drums! You also want something that is intelligible even across the room or in your pocket, and that means simplicity. Look for fun riffs on one or two instruments at the beginnings of songs, steer clear of human voices, bass, and thick mixes. If you want an approximate preview of what it would sound like on your phone, run it through a high-pass filter in Audacity and set the cutoff about 400 Hz. (Of course your phone may have a slightly different frequency response than mine, but the principles apply for almost all phones).

I won’t go into a lot of detail about how to make a ringtone in Audacity, but I’ll give you some general pointers. First, the length should be about 20–30 seconds (after trimming silence). If you want, time the time it takes to go to voicemail. Second, you should normalize the sound to peak at -3 dB (this might actually attenuate some overloud music). If the clip has a lot of dynamic range (louds and softs) you may want to run it through a compressor before normalizing, otherwise the soft will be lost on the bad speakers and noisy world. Penultimately, mix it down to 1 channel—your phone doesn’t ring in stereo and while stereo files will probably work just fine it’s just a waste of space. Finally, pick a medium quality encoding, too high a bitrate will probably be rejected by the phone and you don’t need it.

I often find myself longing to be able to use Clojure, a very enticing lispy language that runs on the JVM.

I could possibly be using it right now in my dissertation research. It has the promise of dynamic languages, functional programming, almost-as-cool-as-Erlang concurrency, JVM performance, and Java library soup. It could be so awesome. A few months ago I started briefly down this road, unaware that…

Clojure sucks. Not generally, but it sucks for DSP. More specifically, Java and therefore Clojure has no real support for complex numbers. In order to do serious DSP, you need native syntactic, semantic, and performance support for complex numbers. Java has none of the above. Older versions of C didn’t have syntactic or semantic support, but the performance of using arrays was plenty fast. Not so in Java, at least not to the extent necessary to override the lack of syntactic and semantic.

So someday, when I’m writing general purpose code again and not high performance DSP code, I will have an opportunity to use Clojure, and I think that will make me very happy. By then the book will be out of beta. The community will be in full swing. There will be awesome libraries. Children will play in pristine parks with formerly-ravenous ravens.

In the meantime, if anyone sees the scene change, do let me know.

So Apple added this Genius thing to iTunes recently. Not being the type to get excited about new iPod styles, it looks like the most interesting thing they could come up with this year. I gave it a try. I am not impressed.

I think it’s because I’ve been spoiled. 5 years ago I was using what I still consider to be the peak of intelligent listening software, IMMS. Genius isn’t half as cool as IMMS was then, and while IMMS hasn’t made any quantum leaps in coolness, quite a few rough edges have been rounded off in the meantime.

I’ve been living in a sort of IMMS drought the past couple of years, since I switched to using a laptop primarily. Namely, an Apple laptop. This Genius release spurred me on to rectify that situation. If the best Apple could do was generate a 25-song playlist based on statistics gathered from other people the hopes of someone else hacking up an iTunes plugin to do IMMS or something like it dwindled to obscurity.

The bane of IMMS is, ironically, its most compelling feature. IMMS is cool because you don’t have to do anything. It pays attention to your listening habits, and analyzes the audio, and makes intelligent decisions for you when you turn on random. 4 years ago I would show up to work and be in a Depeche Mode mood, so I’d manually queue up a Depeche Mode song or two and the whole day I’d be treated to complementary music. If the occasional happy song slipped through, I just skipped it and IMMS took the hint. Don’t underestimate the amazing wow factor of a computer apparently reading your mind.

But this focus on simple non-obtrusive UI has been its biggest technical struggle. Media players are now a dime a dozen, and few of them have the plugin and UI sophistication to support IMMS’ modus operandi. IMMS was developed originally as a plugin for XMMS and even then ugly workaround hacks were required. Then someone wrote a queue control patch for XMMS, and if you patched your XMMS you were in heaven. Oh, did I mention that still almost no other media players even have queue functionality, let alone let the plugins control the queue? Then when you consider the set of media players usable on OS X the situation gets laughable.

Somewhere in the middle MPD came along. It fit my situation well because the speakers over on the desktop were a lot nicer than the ones in my laptop. But queues it has not and nobody seems to care. Von bravely came up with an IMMS hack for MPD, but it was too hacky for me—too much like the old XMMS days before the queue control patch (incidentally, queue control is part of XMMS proper now as of version 1.2.11).

So I suffered along with manual or truly random music listening. Until now.

Recently I looked into this again for the desktop, and I was delighted to discover that one of the many XMMS descendants has finally solved the XMMS bitrot without throwing the baby out with the bathwater. Audacious is as cool as XMMS ever was and as modern as your favorite modern player (unless you measure modern by klunky iTunes-like screen-wasting music browsers). What’s more, the imms plugin for it is right there in the Ubuntu repository. Just apt-get install imms-audacious and enable the plugin and you’re off and running. So I set it up and… didn’t use it. As in, we rarely listen to music on the desktop because nobody really sits there for very long. So finally earlier this week I hammered out a simple remote control using Audacious’ dbus interface. That’s another post, once I knock off a few other TODO points.

Feeling on a roll and feeling left out when at school, I decided to get an IMMS solution on my laptop, running OS X Leopard (10.5.4). I’ll spare you the agonizing play-by-play and give you the shortest path to success: install Audacious and then IMMS. Actually the really shortest path is to install XMMS and then IMMS, because XMMS is in MacPorts. But it’s the old version of XMMS without queue control, and doesn’t have CoreAudio support (you have to use the JACK output plugin) so I don’t recommend that.

To install Audacious, install its dependencies (mostly using MacPorts), then build it and its plugins. Installing its dependencies is the hardest part because it’s difficult to locate libmcs and libmowgli (they’re not where the README says they are, and Google is less than helpful). I just ended up stealing the *.orig.tar.gz files from the Ubuntu packages (apt-get source -d libmcs1 libmowgli). There is one patch you need for the plugins.

 src/CoreAudio/audio.c |    7 ++++++-
 1 file changed, 6 insertions(+), 1 deletion(-)

Index: audacious-plugins-1.5.1/src/CoreAudio/audio.c
===================================================================
--- audacious-plugins-1.5.1.orig/src/CoreAudio/audio.c  2008-09-19 12:08:01.000000000 -0600
+++ audacious-plugins-1.5.1/src/CoreAudio/audio.c   2008-09-19 12:10:28.000000000 -0600
@@ -326,7 +326,12 @@ gint osx_get_output_time(void)
 {
        gint retval;

-        retval = output_time_offset + ((output_total * sample_size * 1000) / output.bps);
+        if (output.bps == 0)
+        {
+            printf("Avoiding divide by zero in osx_get_output_time()\n");
+            retval = 0;
+        } else
+            retval = output_time_offset + ((output_total * sample_size * 1000) / output.bps);
        retval = (int)((float)retval / user_pitch);

        //printf("osx_get_output_time(): time is %d\n",retval);

Next you need to install IMMS. This is a bit more involved, but should be straightforward with these patches. I’ll put them here and talk about each in turn.

First, a missing include for mkdir()

 immsd/immsd.cc |    1 +
 1 file changed, 1 insertion(+)

Index: imms-3.1.0-rc4/immsd/immsd.cc
===================================================================
--- imms-3.1.0-rc4.orig/immsd/immsd.cc  2008-03-02 18:54:06.000000000 -0700
+++ imms-3.1.0-rc4/immsd/immsd.cc   2008-09-19 08:05:58.000000000 -0600
@@ -2,6 +2,7 @@
 #include <errno.h>
 #include <signal.h>
 #include <unistd.h>
+#include <sys/stat.h>

 #include <iostream>
 #include <sstream>

Then, a workaround due to OS X not having an initstate_r() (which I
incidentally couldn’t find in the current Linux manpages on Ubuntu or Debian
either). This patch may not apply cleanly by itself, you may need to apply your
cognitive reasoning.

configure.ac         |    3 +++
immsconf.h           |    3 +++
immsconf.h.in        |    3 +++
immscore/immsutil.cc |    9 +++++++++
4 files changed, 18 insertions(+)

Index: imms-3.1.0-rc4/immscore/immsutil.cc
===================================================================
--- imms-3.1.0-rc4.orig/immscore/immsutil.cc    2008-03-02 18:54:06.000000000 -0700
+++ imms-3.1.0-rc4/immscore/immsutil.cc 2008-09-19 08:13:29.000000000 -0600
@@ -27,6 +27,7 @@ int imms_random(int max)
{
    int rand_num;
    static bool initialized = false;
+#ifndef INITSTATE_BUG
    static struct random_data rand_data;
    static char rand_state[256];
    if (!initialized)
@@ -36,6 +37,14 @@ int imms_random(int max)
        initialized = true;
    }
    random_r(&rand_data, &rand_num);
+#else
+    if (!initialized)
+    {
+        srandom(time(0));
+        initialized = true;
+    }
+    rand_num = random();
+#endif
    double cof = rand_num / (RAND_MAX + 1.0);
    return (int)(max * cof);
}
Index: imms-3.1.0-rc4/configure.ac
===================================================================
--- imms-3.1.0-rc4.orig/configure.ac    2008-03-02 18:54:06.000000000 -0700
+++ imms-3.1.0-rc4/configure.ac 2008-09-19 08:17:58.000000000 -0600
@@ -68,6 +68,9 @@ else
    AC_MSG_RESULT([yes])
fi

+AC_DEFINE(INITSTATE_BUG,, [initstate_r is buggy])
+
+
AC_CHECK_LIB(z, compress,, [with_zlib=no])
AC_CHECK_HEADERS(zlib.h,, [with_zlib=no])
if test "$with_zlib" = "no"; then
Index: imms-3.1.0-rc4/immsconf.h
===================================================================
--- imms-3.1.0-rc4.orig/immsconf.h  2008-09-19 08:05:31.000000000 -0600
+++ imms-3.1.0-rc4/immsconf.h   2008-09-19 08:18:23.000000000 -0600
@@ -121,6 +121,9 @@
/* Define to 1 if you have the <zlib.h> header file. */
#define HAVE_ZLIB_H 1

+/* initstate_r is buggy */
+#define INITSTATE_BUG /**/
+
/* Define to the address where bug reports for this package should be sent. */
#define PACKAGE_BUGREPORT "mag@luminal.org"

Index: imms-3.1.0-rc4/immsconf.h.in
===================================================================
--- imms-3.1.0-rc4.orig/immsconf.h.in   2008-09-19 07:48:52.000000000 -0600
+++ imms-3.1.0-rc4/immsconf.h.in    2008-09-19 08:16:32.000000000 -0600
@@ -120,6 +120,9 @@
/* Define to 1 if you have the <zlib.h> header file. */
#undef HAVE_ZLIB_H

+/* initstate_r is buggy */
+#undef INITSTATE_BUG
+
/* Define to the address where bug reports for this package should be sent. */
#undef PACKAGE_BUGREPORT

This patch is just so libpcre can be found

build/Makefile |    1 +
1 file changed, 1 insertion(+)

Index: imms-3.1.0-rc4/build/Makefile
===================================================================
--- imms-3.1.0-rc4.orig/build/Makefile  2008-03-02 18:54:06.000000000 -0700
+++ imms-3.1.0-rc4/build/Makefile   2008-09-19 12:25:05.000000000 -0600
@@ -18,6 +18,7 @@ libimmscore.a: $(call objects,../immscor
libmodel.a: $(call objects,../model) svm-similarity-data.o
        $(AR) $(ARFLAGS) $@ $(filter %.o,$^)

+immstool-LIBS=`pcre-config --libs`
immstool: immstool.o libmodel.a libimmscore.a
training_data: training_data.o libmodel.a libimmscore.a
train_model: train_model.o libmodel.a libimmscore.a

Linking shared libraries on OS X is so much different from on Linux that there is almost always a need to do a patch something like this.

rules.mk |    5 ++---
1 file changed, 2 insertions(+), 3 deletions(-)

Index: imms-3.1.0-rc4/rules.mk
===================================================================
--- imms-3.1.0-rc4.orig/rules.mk    2008-09-19 09:04:13.000000000 -0600
+++ imms-3.1.0-rc4/rules.mk 2008-09-19 12:25:50.000000000 -0600
@@ -14,9 +14,8 @@ link = $(CXX) $(filter-out %.a,$1) $(fil
%.o: %.c; $(call compile, $(CC), $<, $@, $($*-CFLAGS) $(CFLAGS) $($*-CPPFLAGS) $(CPPFLAGS))
%: %.o; $(call link, $^ $($*-OBJ) $(LIBS), $@, $($*-LIBS) $(LDFLAGS))
%.so:
-   $(CXX) $^ $($*-OBJ) $($*-LIBS) $(LIBS) \
-       $(LDFLAGS) \
-            -shared -Wl,-z,defs,-soname,$@ -o $@
+   gcc -flat_namespace -undefined suppress -o $@ -bundle $^ $($*-OBJ) $($*-LIBS) $(LIBS) \
+       $(LDFLAGS) -o $@

%-data.o: %
        $(OBJCOPY) -I binary -O $(OBJCOPYTARGET) -B $(OBJCOPYARCH) --rename-section .data=.rodata,alloc,load,readonly,data,contents $< $@

This final patch fixes IMMS to use the proper interface for audacious (seems like this would have to be done anywhere?)

clients/audacious/audaciousinterface.c |  177 +++++++++++++++++++++++++++++++++
clients/audacious/rules.mk             |    2
2 files changed, 178 insertions(+), 1 deletion(-)

Index: imms-3.1.0-rc4/clients/audacious/audaciousinterface.c
===================================================================
--- /dev/null   1970-01-01 00:00:00.000000000 +0000
+++ imms-3.1.0-rc4/clients/audacious/audaciousinterface.c   2008-09-19 15:30:21.000000000 -0600
@@ -0,0 +1,177 @@
+#include <gtk/gtk.h>
+
+#ifdef BMP
+#include <bmp/configdb.h>
+#include <bmp/util.h>
+#include <bmp/plugin.h>
+#elif AUDACIOUS
+#include <audacious/configdb.h>
+#include <audacious/util.h>
+#include <audacious/plugin.h>
+#endif
+#include "immsconf.h"
+#include "cplugin.h"
+
+
+int use_xidle = 1;
+int poll_tag = 0;
+
+GtkWidget *configure_win = NULL, *about_win = NULL, *xidle_button = NULL;
+
+gint poll_func(gpointer unused)
+{
+    imms_poll();
+    return TRUE;
+}
+
+void read_config(void)
+{
+    ConfigDb *cfgfile;
+
+    if ((cfgfile = cfg_db_open()) != NULL)
+    {
+        cfg_db_get_int(cfgfile, "imms", "xidle", &use_xidle);
+        cfg_db_close(cfgfile);
+    }
+}
+
+void init(void)
+{
+    imms_init();
+    read_config();
+    imms_setup(use_xidle);
+    poll_tag = gtk_timeout_add(200, poll_func, NULL);
+}
+
+void cleanup(void)
+{
+    imms_cleanup();
+
+    if (poll_tag)
+        gtk_timeout_remove(poll_tag);
+
+    poll_tag = 0;
+}
+
+void configure_ok_cb(gpointer data)
+{
+    ConfigDb *cfgfile = cfg_db_open();
+
+    use_xidle = !!GTK_TOGGLE_BUTTON(xidle_button)->active;
+
+    cfg_db_set_int(cfgfile, "imms", "xidle", use_xidle);
+    cfg_db_close(cfgfile);
+
+    imms_setup(use_xidle);
+    gtk_widget_destroy(configure_win);
+}
+
+#define ADD_CONFIG_CHECKBOX(pref, title, label, descr)                          \
+    pref##_frame = gtk_frame_new(title);                                        \
+    gtk_box_pack_start(GTK_BOX(configure_vbox), pref##_frame, FALSE, FALSE, 0); \
+    pref##_vbox = gtk_vbox_new(FALSE, 10);                                      \
+    gtk_container_set_border_width(GTK_CONTAINER(pref##_vbox), 5);              \
+    gtk_container_add(GTK_CONTAINER(pref##_frame), pref##_vbox);                \
+                                                                                \
+    pref##_desc = gtk_label_new(label);                                         \
+                                                                                \
+    gtk_label_set_line_wrap(GTK_LABEL(pref##_desc), TRUE);                      \
+    gtk_label_set_justify(GTK_LABEL(pref##_desc), GTK_JUSTIFY_LEFT);            \
+    gtk_misc_set_alignment(GTK_MISC(pref##_desc), 0, 0.5);                      \
+    gtk_box_pack_start(GTK_BOX(pref##_vbox), pref##_desc, FALSE, FALSE, 0);     \
+    gtk_widget_show(pref##_desc);                                               \
+                                                                                \
+    pref##_hbox = gtk_hbox_new(FALSE, 5);                                       \
+    gtk_box_pack_start(GTK_BOX(pref##_vbox), pref##_hbox, FALSE, FALSE, 0);     \
+                                                                                \
+    pref##_button = gtk_check_button_new_with_label(descr);                     \
+    gtk_toggle_button_set_active(GTK_TOGGLE_BUTTON(pref##_button), use_##pref); \
+    gtk_box_pack_start(GTK_BOX(pref##_hbox), pref##_button, FALSE, FALSE, 0);   \
+                                                                                \
+    gtk_widget_show(pref##_frame);                                              \
+    gtk_widget_show(pref##_vbox);                                               \
+    gtk_widget_show(pref##_button);                                             \
+    gtk_widget_show(pref##_hbox);
+
+void configure(void)
+{
+    GtkWidget *configure_vbox;
+    GtkWidget *xidle_hbox, *xidle_vbox, *xidle_frame, *xidle_desc;
+    GtkWidget *configure_bbox, *configure_ok, *configure_cancel;
+
+    if (configure_win)
+        return;
+
+    read_config();
+
+    configure_win = gtk_window_new(GTK_WINDOW_TOPLEVEL);
+    gtk_signal_connect(GTK_OBJECT(configure_win), "destroy",
+            GTK_SIGNAL_FUNC(gtk_widget_destroyed), &configure_win);
+    gtk_window_set_title(GTK_WINDOW(configure_win), "IMMS Configuration");
+
+    gtk_container_set_border_width(GTK_CONTAINER(configure_win), 10);
+
+    configure_vbox = gtk_vbox_new(FALSE, 10);
+    gtk_container_add(GTK_CONTAINER(configure_win), configure_vbox);
+
+    ADD_CONFIG_CHECKBOX(xidle, "Idleness",
+#ifdef BMP
+            "Disable this option if you use BEEP on a dedicated machine",
+#elif AUDACIOUS
+            "Disable this option if you use Audacious on a dedicated machine",
+#endif
+            "Use X idleness statistics");
+
+    /* Buttons */
+    configure_bbox = gtk_hbutton_box_new();
+    gtk_button_box_set_layout(GTK_BUTTON_BOX(configure_bbox), GTK_BUTTONBOX_END);
+    gtk_button_box_set_spacing(GTK_BUTTON_BOX(configure_bbox), 5);
+    gtk_box_pack_start(GTK_BOX(configure_vbox), configure_bbox, FALSE, FALSE, 0);
+
+    configure_ok = gtk_button_new_with_label("Ok");
+    gtk_signal_connect(GTK_OBJECT(configure_ok), "clicked",
+            GTK_SIGNAL_FUNC(configure_ok_cb), NULL);
+    GTK_WIDGET_SET_FLAGS(configure_ok, GTK_CAN_DEFAULT);
+    gtk_box_pack_start(GTK_BOX(configure_bbox), configure_ok, TRUE, TRUE, 0);
+    gtk_widget_show(configure_ok);
+    gtk_widget_grab_default(configure_ok);
+
+    configure_cancel = gtk_button_new_with_label("Cancel");
+    gtk_signal_connect_object(GTK_OBJECT(configure_cancel), "clicked",
+            GTK_SIGNAL_FUNC(gtk_widget_destroy), GTK_OBJECT(configure_win));
+    GTK_WIDGET_SET_FLAGS(configure_cancel, GTK_CAN_DEFAULT);
+    gtk_box_pack_start(GTK_BOX(configure_bbox), configure_cancel, TRUE, TRUE, 0);
+    gtk_widget_show(configure_cancel);
+    gtk_widget_show(configure_bbox);
+    gtk_widget_show(configure_vbox);
+    gtk_widget_show(configure_win);
+}
+
+void about(void)
+{
+    if (about_win)
+        return;
+
+    about_win =
+#ifdef AUDACIOUS
+        audacious_info_dialog(
+#else
+        xmms_show_message(
+#endif
+            "About IMMS",
+            PACKAGE_STRING "\n\n"
+            "Intelligent Multimedia Management System" "\n\n"
+            "IMMS is an intelligent playlist plug-in for BPM" "\n"
+            "that tracks your listening patterns" "\n"
+            "and dynamically adapts to your taste." "\n\n"
+            "It is incredibly unobtrusive and easy to use" "\n"
+            "as it requires no direct user interaction." "\n\n"
+            "For more information please visit" "\n"
+            "http://www.luminal.org/wiki/index.php/IMMS" "\n\n"
+            "Written by" "\n"
+            "Michael \"mag\" Grigoriev <mag@luminal.org>",
+            "Dismiss", FALSE, NULL, NULL);
+
+    gtk_signal_connect(GTK_OBJECT(about_win), "destroy",
+            GTK_SIGNAL_FUNC(gtk_widget_destroyed), &about_win);
+}
Index: imms-3.1.0-rc4/clients/audacious/rules.mk
===================================================================
--- imms-3.1.0-rc4.orig/clients/audacious/rules.mk  2008-03-02 18:54:06.000000000 -0700
+++ imms-3.1.0-rc4/clients/audacious/rules.mk   2008-09-19 15:28:17.000000000 -0600
@@ -7,7 +7,7 @@ libaudaciousimms-LIBS = $(AUDACIOUSLDFLA
audaciousinterface-CPPFLAGS=$(AUDACIOUSCPPFLAGS)
audplugin-CPPFLAGS=$(AUDACIOUSCPPFLAGS)

-audaciousinterface.o: bmpinterface.c
+audaciousinterface.o: audaciousinterface.c
        $(call compile, $(CC), $<, $@, $($*-CFLAGS) $(CFLAGS) $($*-CPPFLAGS) $(CPPFLAGS))

AUDACIOUSDESTDIR=""

Phew. And that’s not all. When you build IMMS you need to have OBJDUMP=gobjdump if you’re using the default binutils variant from MacPorts, and this patch:

 rules.mk   |    2 +-
 vars.mk    |    6 +++---
 vars.mk.in |    1 +
 3 files changed, 5 insertions(+), 4 deletions(-)

Index: imms-3.1.0-rc4/rules.mk
===================================================================
--- imms-3.1.0-rc4.orig/rules.mk        2008-09-19 08:49:43.000000000 -0600
+++ imms-3.1.0-rc4/rules.mk     2008-09-19 16:17:33.000000000 -0600
@@ -19,7 +19,7 @@ link = $(CXX) $(filter-out %.a,$1) $(fil
             -shared -Wl,-z,defs,-soname,$@ -o $@

 %-data.o: %
-       objcopy -I binary -O $(OBJCOPYTARGET) -B $(OBJCOPYARCH) --rename-section .data=.rodata,alloc,load,readonly,data,contents $< $@
+       $(OBJCOPY) -I binary -O $(OBJCOPYTARGET) -B $(OBJCOPYARCH) --rename-section .data=.rodata,alloc,load,readonly,data,contents $< $@

 # macros that expand to the object files in the given directories
 objects=$(sort $(notdir $(foreach type,c cc,$(call objects_$(type),$1))))
Index: imms-3.1.0-rc4/vars.mk
===================================================================
--- imms-3.1.0-rc4.orig/vars.mk 2008-09-19 09:03:05.000000000 -0600
+++ imms-3.1.0-rc4/vars.mk      2008-09-19 15:07:44.000000000 -0600
@@ -5,8 +5,8 @@ INSTALL = /opt/local/bin/ginstall -c
 prefix = /usr
 PREFIX = $(prefix)
 OBJCOPY = gobjcopy
-OBJCOPYTARGET =
-OBJCOPYARCH =
+OBJCOPYTARGET = mach-o-le
+OBJCOPYARCH = i386
 exec_prefix = ${prefix}
 bindir = ${exec_prefix}/bin
 datadir = ${prefix}/share
@@ -15,7 +15,7 @@ VPATH = ../immscore:../analyzer:../model
 ARFLAGS = rs

 SHELL = bash
-PLUGINS = libxmmsimms.so
+PLUGINS = libxmmsimms.so libaudaciousimms.so
 OPTIONAL = immsremote analyzer

 GLIB2CPPFLAGS=`pkg-config glib-2.0 --cflags`
Index: imms-3.1.0-rc4/vars.mk.in
===================================================================
--- imms-3.1.0-rc4.orig/vars.mk.in      2008-03-02 18:54:06.000000000 -0700
+++ imms-3.1.0-rc4/vars.mk.in   2008-09-19 16:17:24.000000000 -0600
@@ -4,6 +4,7 @@ VERSION = @PACKAGE_VERSION@
 INSTALL = @INSTALL@
 prefix = @prefix@
 PREFIX = $(prefix)
+OBJCOPY = @OBJCOPY@
 OBJCOPYTARGET = @OBJCOPYTARGET@
 OBJCOPYARCH = @OBJCOPYARCH@
 exec_prefix = @exec_prefix@

Finally, make install doesn’t finish the job.

cp build/libaudaciousimms.so /usr/local/lib/General/imms.impl

Well I think that’s all the information you need, though it may not go smoothly. Hopefully we can get this all worked into IMMS proper and the 3.1.0 release will just work. If you use linux give Audacious+IMMS a try—it’s easy and painless. If you think Audacious is for sissies, learn about the queue and the jump feature and try out IMMS for a week or two before you pass final judgement.

Oh, two final notes: Installing Torch can be a real pain and Audacious keyboard shortcuts don’t work well with the gtk2 +quartz variant in MacPorts, so you want to stick with X11 gtk2. Oh, and though Audacious has a Last.fm plugin I haven’t yet been able to figure out how to get it to stay enabled.
